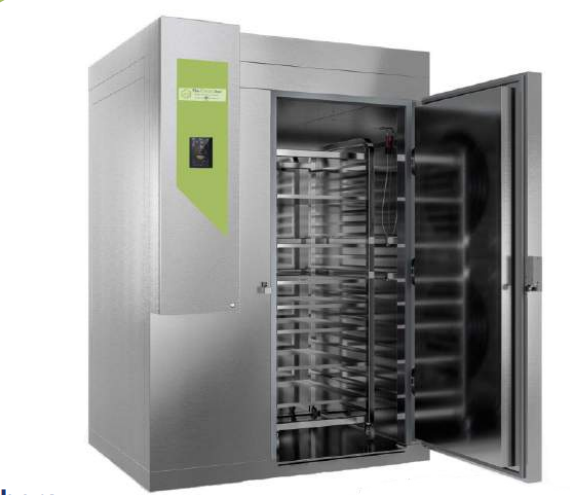

Stability Chambers
Technical Specification
Capacity
–
Dimensions ( HxWxD mm / inch )
–
Temperature Range
0°C to 60°C (32°F to 140°F)
No. of Baskets
–
No. of Door
1
Insulation
–
Gas (Refrigerant)
–
Voltage
110 / 220 / 440 Volts and 50 / 60 Hz.
Inner & Outer Body Material
Corrosion Resistant Prepainted Galvanised Steel Sheet
Salient Features
- Desktop based or Server based SCADA software for data management having support for 21 CFR
Part 11 compliance. 100% redundant refrigeration & humidity systems with automatic change over.
8 point temperature and 8 point relative humidity monitoring sensors for online mapping. - Standby temperature and humidity sensors
- Printer interface and data storage facility
- Email and SMS alert systems
- Ethernet communication protocol
- Door Access Security system
- Remote audio visual alarm
- PLC based control system with 7” colour HMI, and front mounted compact design. Country specific
electrical panel design to comply with local electrical standards of 110 / 220 / 440 Volts and 50 / 60 Hz. - Safety system to cut off the power supply in case of overshoot and undershoot of temperature and
humidity conditions giving audio visual alarms. - Additional safety thermostat to cut off the power supply in case the temperature overshoots. Low water
level alarm for humidity system. - Emergency push button inside the chamber to de-energise magnetic lock. Panic switch inside the
chamber with audible alarm outside. Manual unlocking mechanism for door from inside the walk-in
chamber.
Description
ENERGY EFFICIENT. DURABLE. ECONOMICAL
Our stability chambers meet the ICH guidelines for drug substance and product storage testing.
The walk-in chambers are ideal for drug stability studies, shelf-life testing for packaged products, and other
large-scale biological research.We use environment friendly processes and refrigerants.
TGB Chambers feature 0°C to 60°C (32°F to 140°F) temperature range that can be set in 0.1°C
increments. Ducted Airflow System distributes airflow uniformly through out the chamber.
Various options are available to address specific needs of over all dimensions, shelving, door size, water
system, energy efficiency, choice of materials , IOT system for remote monitoring of the health of the
chamber.
The following options are offered :
|
|
|
|
|
|
|
|
