Cold Room
Technical Specification
Insulation
Modular Cold Room Panels With Rigid Polyurethane Foam and Cam Locking Facility.
Thickness
60, 80, 100, 125, 150 and 200mm.
Lamination
Pre-Coated GI On Both Side, SS Sheet (Grade 202, 304/316), GI Plain Sheet Both Sides or A Combination Of Any 2 Of The Above.
Floor Finish
Aluminum Checkered Plate With Marine Plywood, PUF Slabs, EPS Slabs, XPS Slabs, Tarfelt Cladding etc.
Can Be Provided Depending On Customers Requirment.
Injected Density
40Kg/m3(+/-2)
Thermal Conductvity
0.022 W/m2K
Vapour Permeability
5.5mg/PASM
Operational Temp
-40°C to +80°C
Fire Resistance
PIR Panels (Polyisocyanurate) Can Be Provided Where a Requirement For Resistance To Fire may Be Higher.
Salient Features
- Comes With An App-Based Monitoring System
- High Insulation Thickness & High-Quality Energy-Efficient Components
- High Heat Exchange Coefficients
- Adjustable, Compact & Easily Openable Side Panels
- IP 44 Class Protection Against Water Splashing & Debris
Description

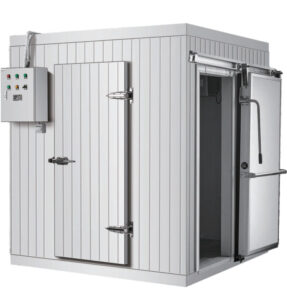

The Cold Room a wide range of Walk-In Coolers and Freezers Rooms in PUF insulted sandwich panel starting from 125 CFT in volume to any volume the customer needs. Each modular cold Room prefabricated insulation panel has cam-action locking devices precisely positioned for enhancing the rooms air tightness.
Doors:
- Swing doors, sliding doors with clear door openings of 24”X72”, 30”X72” etc.(Optional)
- Non-corrosive hinges, door handles and locks
- View ports provided on the doors(optional)
- Hatch doors(optional)
- Self closing : Ensures that the doors remain closed
- Self closing : Ensures that the doors remain closed
- Safety release : Doors can be opened from the inside of emergency
Precision locking Mechanism:
- Each Green Box pre-fabricated insulation panel has cam-action locking devices precisely positioned and firmly
anchored within it. - Al cam-locks are accessible from within by means of a hex wrench provided with the panel.
- Cam-locks have integral rear flanges to permanently anchor their position during the manufacturing of the
PUF panels. - Tamper-proof cam-locks.
BEFORE LOCKING THE PANEL
BEFORE LOCKING THE PANEL
PUF Panels:
The Cold Room a wide range of Walk-In Coolers and Freezers Rooms in PUF insulted sandwich panel starting from 125 CFT in volume to any volume the customer needs. Each modular cold Room prefabricated insulation panel has cam-action locking devices precisely positioned for enhancing the rooms air tightness.
Insulation : Modular cold Room panels with rigid polyurethane foam and cam locking facility
Thickness : 60, 80, 100, 125, 150 and 200 mm
Lamination : Pre-painted GI on both sides, SS sheet (Grade 202, 304/316), GI plain sheet both sides or combination of any of the above
Floor Finish : Aluminum checkered plate with marine plywood, PUF slabs, EPS slabs, XPS slabs, Tarfelt cladding etc. can be provided depending on customer’s requirement
Injected Density : 40Kg/m^3(+/-2)
Thermal Conductivity : 0.022W/m2K
Vapor Permeability : 5.5mg/PASM
Operational Temp : . 40 C to +80 C
Fire Resistance : PIR panels (Polyisocyanurate) can be provided where a requirement for resistance to fire may be higher
Accessories
- Swing Doors:
Width:1000/1200/1500/1800 mm
Height:1860 to 3000 mm
Thickness:80mm to 200mm
Panel Surface Material: Both side PPGI
or SS as per requirement.
- Strip Curtains:
Semi transparent PVC strip curtain for negative
temperature application to reduce heat loss and
ultimately save power.
- Hatch Door:
Opening Size (WXH) : 20”x20”,24×24,20”x30
Different size hatch door with heavy frame for
easy material movement in high turnover ice
cream and dairy industries
or SS as per requirement.
- View Port:
View port with three layer argon filled
toughened safety glass which can be visible up
to -20°C inside cold room.
- Pressure Relief Ventilator:
Tri-action pressure ventilator with/
without heater to balance pressure and
vacuum inside cold room
or SS as per requirement
- Stainless Steel Racks:
High quality with Robust Shelfing system with
high standard of hygiene for food safety
- Control Panel With IoT:
Our control panels are designed to maximize
the performance of all types of refrigeration
systems. Optional features of remote
monitoring and BMS compatibility are
available.
- Corner Panels:
Specially designed corner panel ensures air
tightness between panels and provides uniform
straight line. This allows high insulation and thus
minimizes the energy consumption in Cold Air
Warehouses.
